CNC Routers

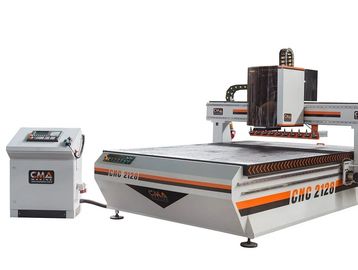

CNC 2120 industrial CNC router machine with control panel.

CMA 1212

Work Area 1200*1200*120mm

Max. Speed 18,000 mm/min

Max. Cutting Speed 10,000 mm/min

Spindle - 5.5kW Air Cooling /24000 RPM ATC (5) - AREL Turkey

Delta Controller

Vacuum Table

Vacuum Pump

Drives - Delta

X Axis - Rack & Pinion

Y Axis - Rack & Pinion

Z Axis - Linear Guide Ball screw

Supply 3Phase AC

XYZ Axis working area 600*1200*120mm (XYZ)
Resolution 0.025mm
XYZ Movement Taiwan TBI Ball Screw Dri

CNC 1260

Work area 600*1200*120mm

Max. Speed 18,000 mm/min

Max. Cutting Speed 10,000 mm/min

Spindle - 4.5kW air cooling /18000rpm

Italy HSD

Lambda Controller

T- slot Table

X Axis - YASKAWA Servo 400w

Y Axis - YASKAWA Servo 750w

Z Axis - YASKAWA Servo 400W with Brake

X Axis - Linear Guide Ball screw

Y Axis - Linear Guide Ball screw

Z Axis - Linear Guide Ball screw

Supply 1Phase AC

Compact CNC router machine designed for precise cutting and engraving.

CNC 6090

Work area 600*900*120mm

Max. Speed 18,000 mm/min

Max. Cutting Speed 10,000 mm/min

Spindle - 4.5kW air cooling /18000rpm

Italy HSD

Lambda Controller

T- slot Table

X Axis - YASKAWA Servo 400w

Y Axis - YASKAWA Servo 750w

Z Axis - YASKAWA Servo 400W with Brake

X Axis - Linear Guide Ball screw

Y Axis - Linear Guide Ball screw

Z Axis - Linear Guide Ball screw

Supply 1Phase AC
